6.3T Expanded Metal Filter Element Production Line

Expanded metal machine

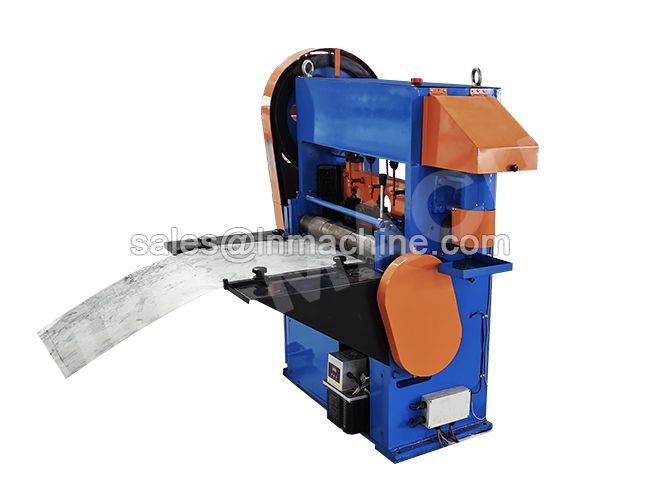

LN25-6.3 high speed model expanded metal machine belongs to micro size machine. The machine can make expanded metal mesh width up to 650mm, and the mesh thickness up to 1.5mm. This machine is high speed machine it can running 400times/min.

Famous electrical components with good quality.

Mesh length can be set by PLC.

Pneumatic clutch device ensures more stable machine operation.

Different mesh opening sizes can be achieved by using different upper cutters.

Inquire Now Next Product

Parameter

Detail

Case

Model	LN25-6.3
Material thickness	0.15-1.5
Max width	650
Feeding distance	0-10
Working speed	280-320
Length of mesh	20
Motor power	4

It is suitable for the material such as low carbon steel sheet, aluminum sheet, stainless steel sheet, aluminum magnesium alloy sheet, copper sheet, Nickel sheet.

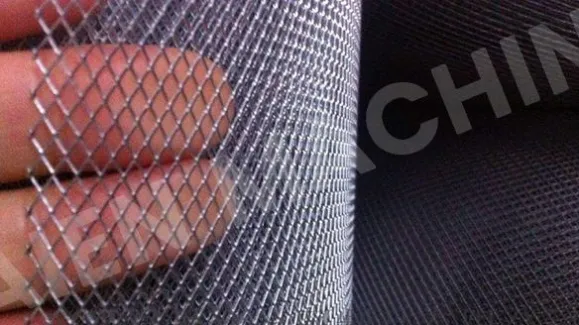

The light expanded metal mesh widely use for filter, stereo shield, decoration, arts and crafts, covering screen for first class sound case etc.
