Expanded Metal Mesh Angle Bead/Plaster Stop Machine

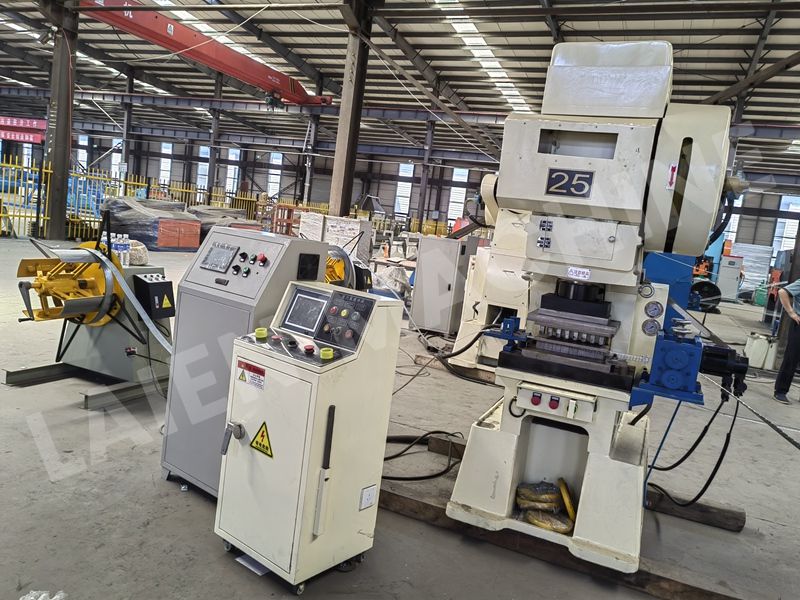

Production Line - Architrave & Plaster Stop

GENERAL FEATURES

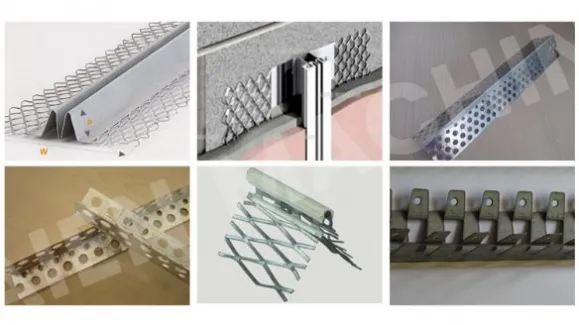

Angle beads /Corner beads are used on the corner of walls. Angle beads inside the plaster on corners enable rigidity, straightness and long lifetime for Wall corners.

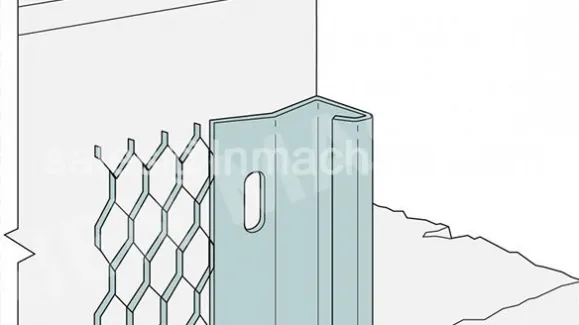

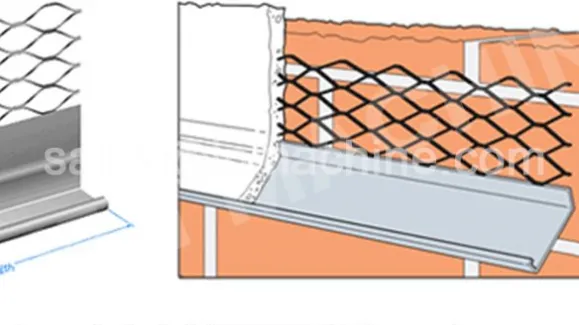

PLASTER STOP BEADS are used for the finishing and reinforcing of plaster edges. They provide a true straight line and protect the plaster layer.

ARCHITRAVE BEADS gives a channel gap between different wall finish and ceiling, door, panel, window details.

CONTROL JOINT BEADS are designed to deal with normal initial stucco shrinkage during the hydrating and curing stage of the Portland cement stucco coats.

Inquire Now Next Product

Parameter

1	Processing Material	PPGI; GI
2	Processing Thickness	0.3-0.8mm
3	Material of Roller	45#steel
4	Material of Shafts	45#steel
5	Total Power	8.5kw
6	Material of Cutting Blades	Cr12
7	Brand of PLC	Delta/Mitsubishi/Siemens
8	Production Speed	20-25m/min
9	Brand of Frequency Converter	Schneider
10	Transmission Type	Chain transmission Decelerating motor
11	Voltage	380V 50HZ or as your requirement
12	Cutting Type	Mold Cutting
