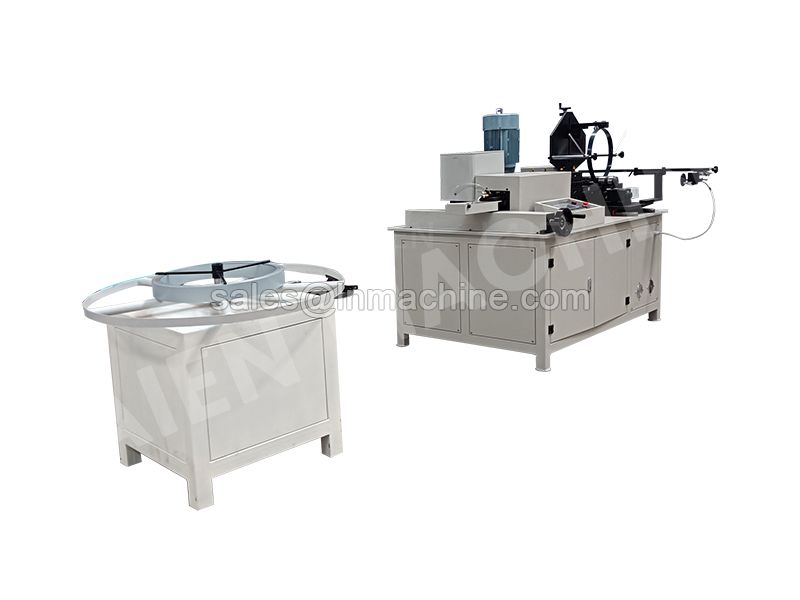

The Expanding Rolling Machine

The Expanding Rolling Machine is a mechanical equipment used to process diamond mesh or other round products.The raw materials for processing are galvanized strip and various carbon steels.The Expanding Rolling Machine is mainly composed of a frame, a rolling disc, a clamping mechanism and a transmission system.It can be used to process metal materials of different sizes to meet the needs of rolling in different fields..

Advantages

Improve production efficiency:The finished product roll cutting process adopts pneumatic cutting, which is continuous and non-stop, greatly improving production efficiency

cost saving:Compared with traditional rolling methods, the expansion rolling machine saves labor costs and reduces material waste.

Quality assurance:The equipment undergoes strict quality control and testing to ensure the high quality and performance of the product

Easy to operate:Control system by PLC.Very easy and quick to change the diameter of spiral tube.

Inquire Now Next Product

Parameter

Detail

Case

Applicable material	Galvanized steel bars and various deep dra
Thinckness of ship	0.5-0.8mm
Strip width	109mm
Diameter range	Ф80-Ф500mm
Production speed	0-10m/min
Mould	Adjustable steel mold diameter range
Cutting mode	Pneumatic circular blade stacking cut off,continuous non-stop
Seams way	Inside and outside the flat outer seams
Motor power	4.37kw
Host weight	1000kg

Application

Expanding rolling machines are widely used in various industrial fields. For example, in the construction industry, expanding rolling machines can be used to make various arc-shaped steel structures; in the petrochemical industry, expanding rolling machines can be used to make various pipe fittings; in the automotive industry, expanding olling machines can be used to produce auto parts. In addition, expanding rolling machines can also be used in the fields of electricity, aerospace, medical equipment, etc.

We can supply all kinds of flatten machine, such as four-roller flatten machine, two-roller flatten machine, manual flatten machine, hydraulic flatten machine, etc. Currently the machine is applied to processing expanded metal with a maximum sheet thickness of 4mm and a length between 0.5m to 2.5m.

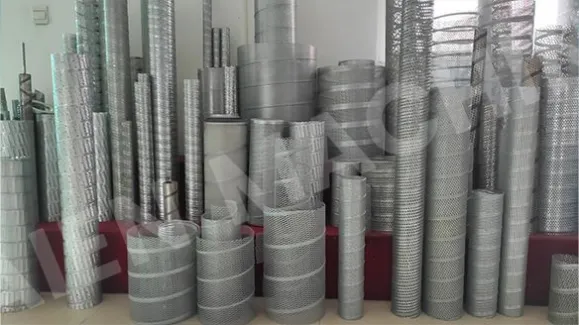

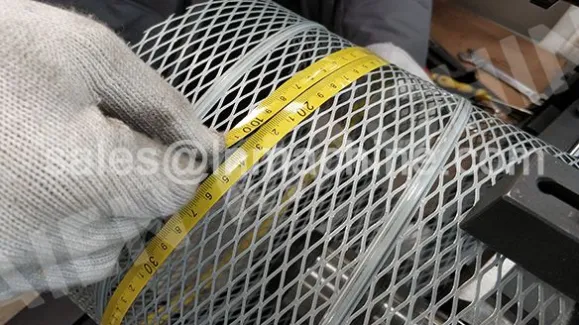

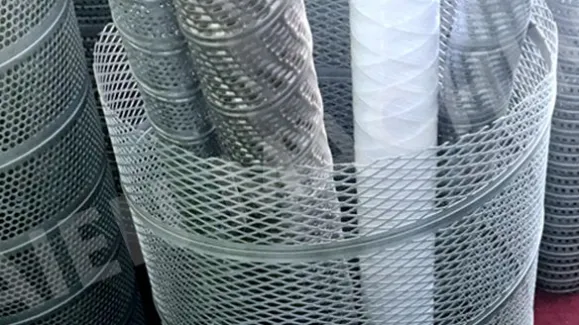

Finished Product Pictures

Customized Products
