Leveling Machine

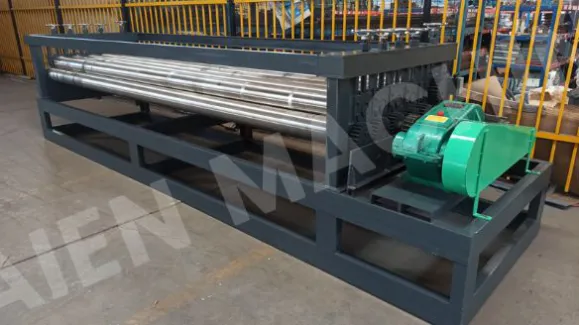

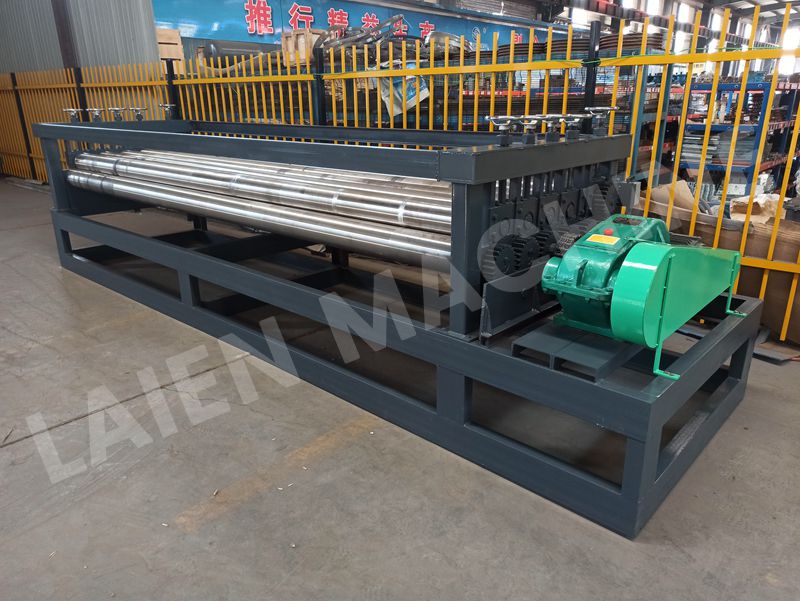

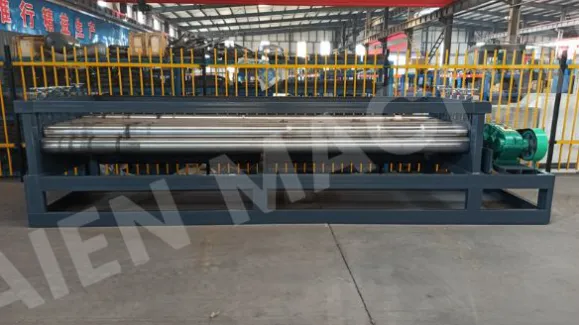

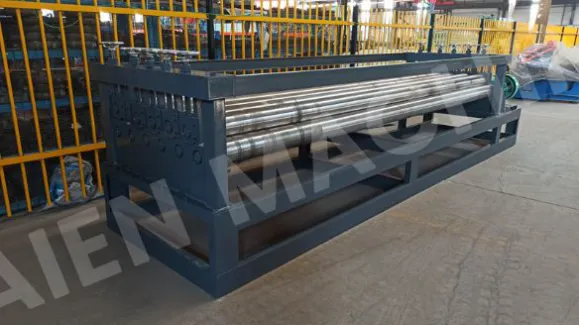

ZPJ metal mesh flatting machine is special designed for expanded metal flatting. It’s a corollary equipment of expanded metal machine. It can make expanded wire-mesh smoothly. And the flattened expanded metal have much more widely different applications.

We can supply all kinds of flatten machine, such as four-roller flatten machine, two-roller flatten machine, manual flatten machine, hydraulic flatten machine, etc. Currently the machine is applied to processing expanded metal with a maximum sheet thickness of 4mm and a length between 0.5m to 2.5m.

Inquire Now Next Product

Parameter

Detail

Case

Model	ZPJ800	ZPJ1000	ZPJ1300	ZPJ1500
Width	800mm	1000mm	1300mm	1500mm
Thickness	0.5~3mm	0.5~3mm	0.5~3mm	0.5~3mm
Roller diameter	300/280mm	320/300mm	350mm	450/350mm
Machine weight	2T/1.8T	2.5T/2.8T	4T	6.5T/5.5T
Motor power	3kw	4kw	5.5kw	7.5kw

It is suitable for the material such as low carbon steel sheet, aluminum sheet, stainless steel sheet, aluminum magnesium alloy sheet, copper sheet, Nickel sheet.
